    Constant Temperature And Humidity Test Chamber

    Ask Lasest Price
    Brand Name : Dongjun
    Model Number : DJ-CT2001
    Certification : ISO9001,CE,
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 500pcs
    Delivery Time : 15-25Work days
    • Product Details
    • Company Profile

    Constant Temperature And Humidity Test Chamber

    Constant Temperature and Humidity Test Chamber

    Product use

    The temperature and humidity test chamber can quickly and accurately simulate the different indicators of constant temperature and humidity climate. It is used to test the performance of products that need temperature test (-40℃~+150℃), humidity test (20~98%RH) or temperature and humidity test at the same time. The power of the chamber can be customized.

    The environmental test chamber, also known as the constant temperature and humidity chamber, is designed to test the performance of materials under various environmental test equipment and various material retention tests, cooling tests, heating tests, wet tests and drying tests... It is suitable for product quality testing purposes such as electronics, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace, etc.

    Parameters

    PerformaneTemp.& Humi. Adjust WayBalanced temperature and humidity control (BTHC) PID intelligent adjustment
    Temperature Range-20℃,-40℃,-70℃~150℃
    Temperature Accuracy0.01℃
    Temperature Tolerance≤±1.0℃或±2.0℃
    Temperature Fluctuations≤±0.5℃ (without load and temperature stable)
    Temperature Uniformity≤1.5℃ (without loading), 50mm≤SENSOR
    Humidity Range20%-98%RH
    Humidity Accuracy0.1%RH
    Humidity Tolerance1 ,≥75%RH:≤±3%RH ;2 ,≤75%RH :≤±6%RH
    Humidity Fluctuations≤±2.5%RH
    Heating Rate3℃/min in average
    Cooling Rate1℃/min in average
    RegulatorCooling MethodSingle stage compression, two stage compression
    RefrigeratorHermertically Sealed France Tecumseh Compressor or Semi-hermetic BOcK Compressor
    Cooling MethodAir-cooled

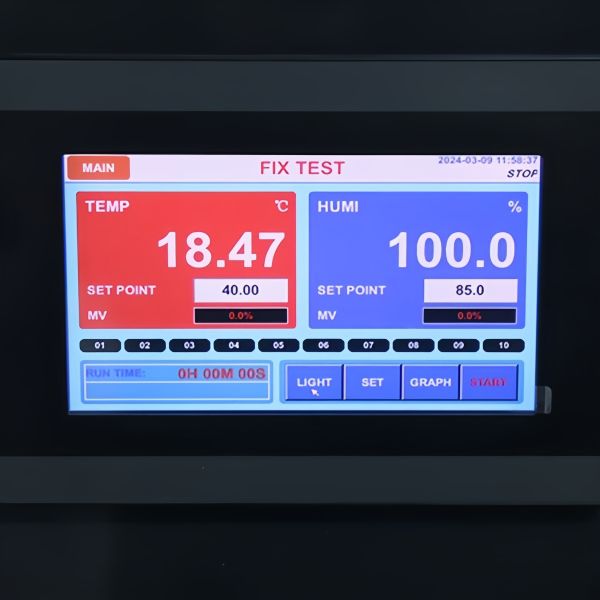

    ControllerOperation PanelProgrammable LCD Touch Screen
    Running ModeFix Running, Pattern Running
    Program Memory Capacity120 Group Programmable, Max 100 Section Each
    OutputRs-232 (USB,Optional)
    Water SupWater SupplyCirculating Water
    Water Tank CapacityChamber Internal Capacity < 800L: 25L X 1pc
    Chamber Internal Capacity > 800L: 25LX 2pc

    Products Advantages

    Substantive yet chic, we create magnificent designs that exudes grandeur without compromising on comfort and reliability. Our thoroughly engineered products combine convenience with sophistication.

    Precise Temperature and Humidity Control
    Equipped with high-precision sensors and an advanced PID control system, our chamber ensures exact temperature and humidity regulation, creating a stable testing environment.
    Wide Temperature and Humidity Range
    Provides a broad testing range to meet various product testing needs, from low temperature and high humidity to high temperature and dry conditions.

    Product Details

    The temperature and humidity test chamber redefines excellence with its cutting-edge precision and control, flawlessly simulating diverse environments for accurate, reliable testing.

    PLC Operation Step types include: ramp, soak, jump, auto-start, and end.

    Internal Chamber High performance and quiet operation (68 dBA)


    Note: Low Temp. & Low Humidity

    High performance refrigeration Scroll compressors

    The Dongjuntemperature and humidity test chamber features a premium compressor designed to ensure precise environmental simulation. This high-performance compressor provides consistent cooling, stability, and energy efficiency, supporting rigorous testing standards across various industries and ensuring reliable operation for long-term durability.

    Product Application:

    Ideal for simulating extreme climates, our temperature and humidity test chamber ensures product resilience in diverse environments, from scorching deserts to freezing tundras, guaranteeing optimal performance under any conditions.

    Company Profile

    PACKING AND TRANSPORTATION

    FAQ

    How to install and use the product?

    The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

    How about the packing for machine, is it safely protected during transportation?
    Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
